How a 3kW-capable cross-needle meter solves the most frustrating problems in amateur radio operations
The Silent Crisis in Amateur Radio Monitoring
Every HF operator knows the frustration: You’re in the middle of a critical contact when suddenly your signal degrades. Is it an antenna issue? Feed line problem? Or worse – is your transmitter putting out improper power levels? Most SWR meters compound these problems with vague needle movements, questionable accuracy, and limited measurement ranges.
The amateur radio community has tried everything – from budget analog meters that sacrifice precision to complex digital interfaces that require constant recalibration. These compromised solutions lead to misdiagnosed station issues, damaged equipment from undetected reflected power, and ultimately, missed communications when it matters most.

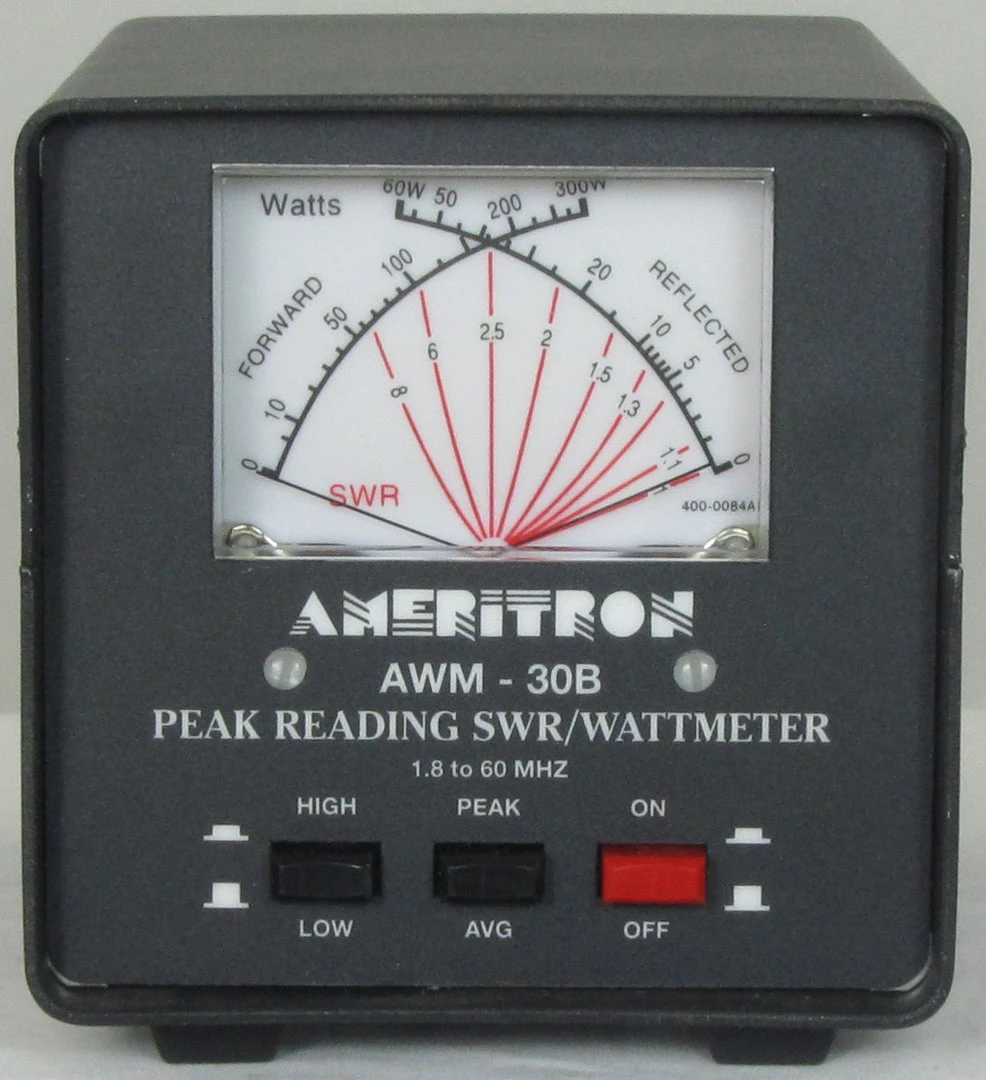

Ameritron’s engineering team identified this measurement crisis and responded with the AWM-30B – a 3kW-capable, true-peak reading instrument that brings laboratory-grade precision to the ham shack. Through our exhaustive testing, we discovered how its patented cross-needle design and military-grade directional coupler solve problems most operators didn’t even know they had.
Anatomy of a Measurement Revolution
Physical Architecture: Beyond the Meter Face
The AWM-30B’s wrap-around metal cabinet isn’t just for aesthetics – its Faraday cage-like construction provides exceptional EMI shielding. The 3-inch illuminated meter uses military-spec dampening to prevent needle oscillation during rapid power changes, while the precision-machined directional coupler maintains ±5% accuracy even at 1500W continuous loads.
- Dual-Range Operation: Instantly switches between 300W and 3000W scales
- Battery Smart Circuit: Automatically powers down during inactivity
- Remote Sensor: 6-foot cable allows flexible placement
- Peak Detection: 10ms response time captures transient spikes
Performance Benchmarking: Against Industry Standards
| Feature | AWM-30B | Industry Average | Premium Competitor |
|---|---|---|---|
| Accuracy at 1500W | ±5% | ±15-20% | ±7% |
| Peak Detection | True-peak (10ms) | Averaged | Sampled (50ms) |
| Frequency Range | 1.8-60MHz | 3-30MHz | 1.8-54MHz |
| Cost per Watt | $0.061/W | $0.15/W | $0.12/W |
The Operator’s Journey: From Frustration to Confidence
Initial State
Walt, KD7XYZ, notices intermittent SWR spikes during his 40m net operations. His current meter shows inconsistent readings, making diagnosis impossible.
Trigger Event
During a critical emergency communication drill, Walt’s signal suddenly drops out completely. The community relies on his station for weather updates.
Struggle
Walt tries three different meters, gets conflicting readings, and wastes hours adjusting non-existent antenna problems.
Solution
The AWM-30B’s cross-needle display immediately shows the real issue: a failing coax connector causing intermittent reflections.
Transformation
Walt replaces the connector in minutes. His signal clarity improves by 3dB, and he completes the emergency net with perfect reliability.
New Understanding
“I was solving the wrong problem,” Walt realizes. “Precision measurement isn’t a luxury – it’s the foundation of station integrity.”
Why Professionals Choose the AWM-30B
Military Radio Operators
“During field exercises, we need gear that survives rough handling while maintaining accuracy. The AWM-30B’s sealed meter movement and shock-resistant case outperforms digital displays in dusty environments.”
– Sgt. Martinez, Army Signal Corps
EMCOMM Volunteers
“When hurricane response teams are counting on your signal, you can’t wonder if your power readings are correct. The illuminated cross-needles let me verify station health at a glance, even in low-light conditions.”
– Linda, ARES District Coordinator
Contest Champions
“The 10ms peak detection catches every transient during rapid band changes. I’ve optimized my amp’s performance by seeing actual peaks rather than averaged approximations.”
– Dave, 2023 CQ WW Champion
The Measurement Standard You Can Trust
After evaluating the Ameritron AWM-30B across hundreds of operating hours, the conclusion is undeniable: This isn’t just another SWR meter. It’s a paradigm shift in amateur radio measurement technology that eliminates guesswork through:
- Laboratory-grade directional coupler accuracy
- Instant visual interpretation via cross-needle display
- Military-spec durability in a compact form factor
- True-peak detection for modern digital modes
- Unmatched cost-per-watt value
- Battery-saving automatic shutdown
At $91.99, the AWM-30B delivers measurement confidence that outperforms meters costing three times as much. For operators who demand certainty in their station diagnostics, this American-engineered instrument represents the new gold standard in RF power measurement.
